Products
Four 3D Sorter Models
Four products address small-to-medium multi-destination sorting, high-throughput multi-layer sorting, complex express/postal items and chute expansion. Evaluate configuration by item profile, destinations and site conditions.
40,000pcs/h
M mechanical throughput
2,500chutes
X configuration; customizable
4products
Selected by items and workflow
Flexibleconfiguration
By destinations and site conditions
Product Selection
Choose by warehouse scenario
| Scenario | Recommended product | Why it fits | Key metrics |
|---|---|---|---|
| High-throughput, multi-layer continuous sortation | 3D Sorter M | Multiple carts per column and large roll-cage chutes; direct manual induction or project-specific automatic induction. | Mechanical: 40,000 pcs/h · 200 customizable roll-cage chutes |

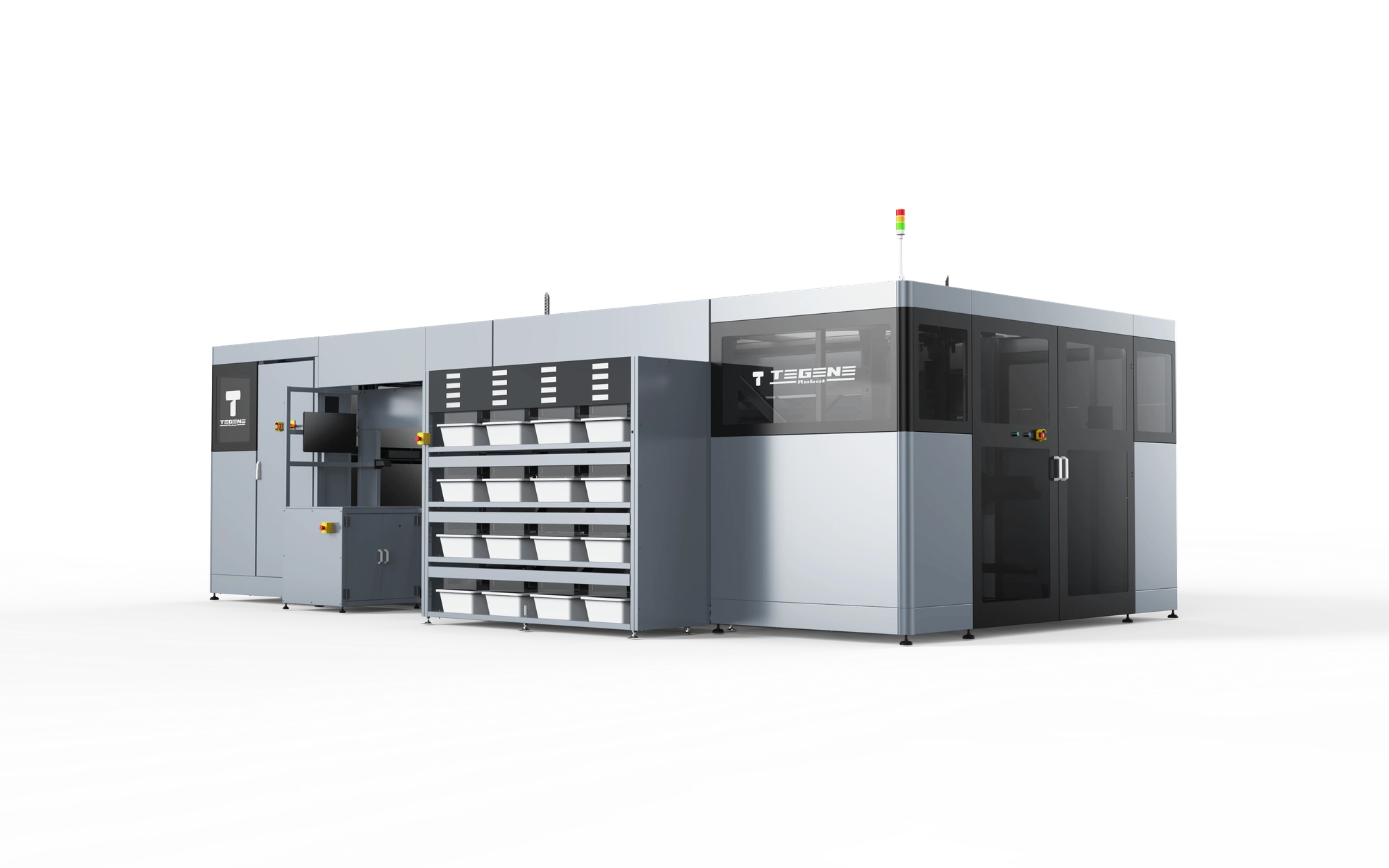

| Standard parcels and multi-destination sorting | 3D Sorter | Lifting single- or dual-cart-per-column structure, multiple chute formats, modular combinations and split-line operation. | Mechanical: 24,500 pcs/h · 1,000 customizable chutes |

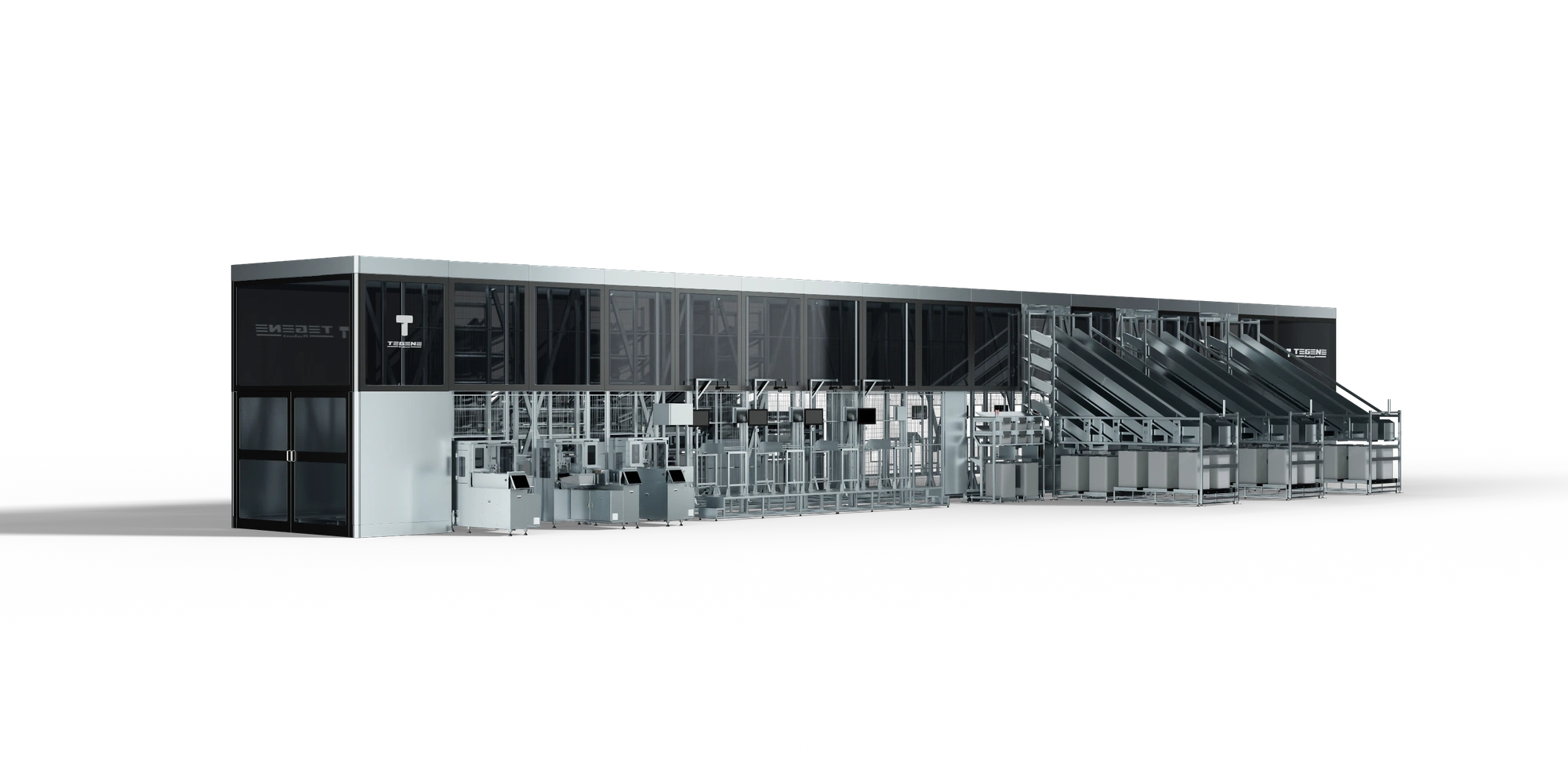

| Non-conveyable, envelope and flat items | 3D Sorter E | For complex express and postal items, integrating induction through delivery to reduce manual NC re-sorting. | Mechanical: 31,000 pcs/h · 1,500 customizable chutes |

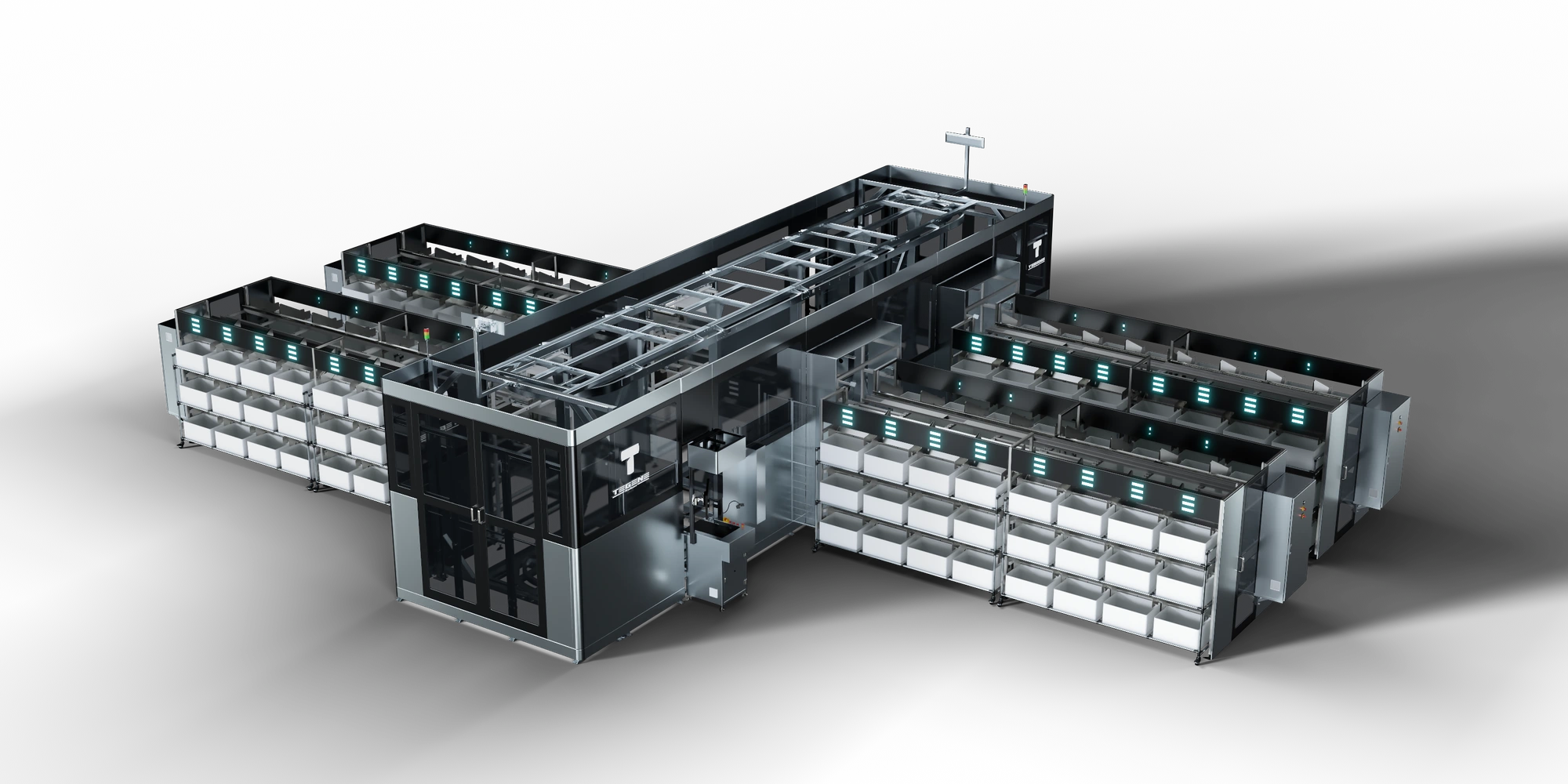

| Chute expansion, store replenishment and returns | 3D Sorter X | Adds chutes to the standard 3D Sorter in phases, with extension planned around the existing configuration and site conditions. | Mechanical: 11,000 pcs/h · 2,500 customizable chutes |
Data Needed for Assessment
To evaluate equipment scale, chute count and deployment boundaries, prepare the following information for consultation.
- Warehouse area, available equipment zone and current material flow
- Average volume, peak volume, order waves and main destination flows
- Parcel size, weight range, barcode/RFID recognition and induction mode
- WMS, ERP, MES or existing automation interfaces that need to be connected
Next Step
Turn product selection into a deployable plan
Tell us your site size, parcel mix, peak volume and target market — we’ll respond with a specific model recommendation and deployment plan.
Get a Product Recommendation
